General Information of This Peptide-drug Conjugate (PDC)
PDC ID
PDC_01570
PDC Name
Tetrapeptide 41 - AZT monophosphate conjugate
PDC Status
Investigative
Indication
In total 1 Indication(s)
Human immunodeficiency virus infection

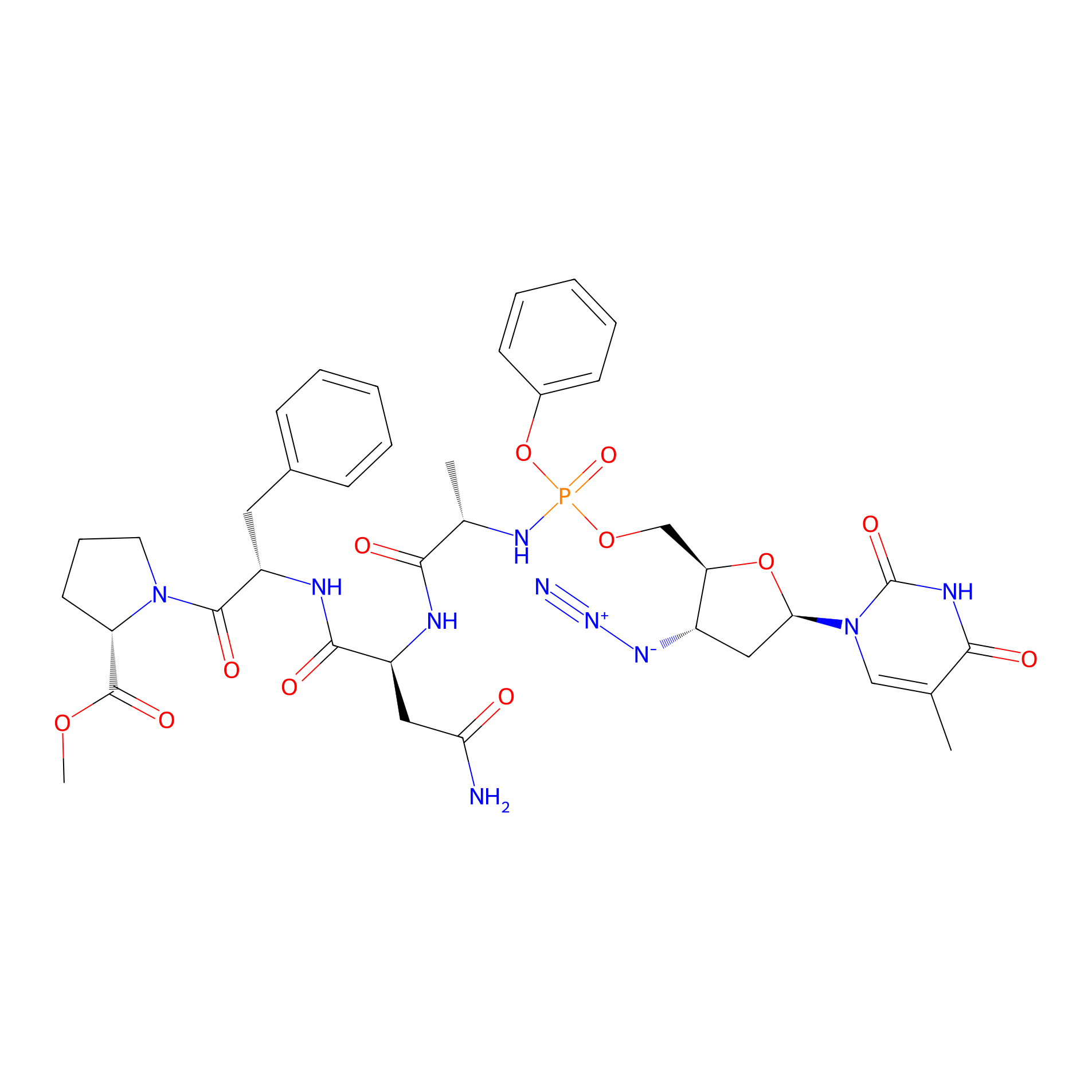

Structure
Peptide Name
Tetrapeptide 41
 Peptide Info
Receptor Name
HIV-1 protease
 Receptor Info
Drug Name
Zidovudine monophosphate
 Drug Info
Linker Name
Phosphoramidate bond
 Linker Info
Formula
C38H47N10O12P
#Ro5 Violations (Lipinski): 3 Molecular Weight 866.826
Lipid-water partition coefficient (xlogp) 1.0764
Hydrogen Bond Donor Count (hbonddonor) 5
Hydrogen Bond Acceptor Count (hbondacc) 14
Rotatable Bond Count (rotbonds) 19
Full List of Activity Data of This Peptide-drug Conjugate
Revealed Based on the Cell Line Data
Click To Hide/Show 7 Activity Data Related to This Level
Experiment 1 Reporting the Activity Data of This PDC [1]
Indication Human immunodeficiency virus infection
Efficacy Data Half maximal cytotoxicity concentration (CC50) > 50 μM
MOA of PDC
We report on the synthesis of a series of peptideAZT (2A, 2B, 5A, 5B) and peptide-(AZT-MP) conjugates incorporating peptide sequences found in a nonapeptide known to be a HIV-PR substrate. We also selected the AZT-MP phosphoramidate peptide-conjugates containing an additional alanine residue directly linked to the phosphorus atom. Indeed, among the various aminoacid phosphoramidates of ddN analogues known so far, the alanine derivative was shown to be one of the most efficient ddN-MP delivery system. All these conjugates contain the scissile Phe-Pro motif. In the case of the AZT prodrugs, the AZT and peptide moieties were connected through an ester bond. To ensure a greater stability, particularly toward aminopeptidases, the N-terminal amino group of the peptide was masked by different protecting groups. In the case of the AZT-MP prodrugs, the various peptide moieties were connected via their N-terminal amino group to the AZT-phenoxy-phosphodiester group. We report also on (i) the stability of the peptide-AZT and peptide(AZT-MP) prodrugs when incubated in a physiological medium that does or does not contain 10% fetal calf serum, and in CEM cell lysates in order to mimic the behaviour of these compounds inside the cells, (ii) their ability to inhibit the HIV-PR activity and their susceptibility to be hydrolysed by PR, and (iii) their in vitro anti-HIV activities and cytotoxicities, which were evaluated in acutely-infected and uninfected MT4 and CEM cells, respectively. Moreover, their antiviral activities were also investigated in a thymidine kinase-deficient (TK- ) CEM cell line in order to gain further insight into their mechanism of action.

   Click to Show/Hide
Description
Concerning the phosphoramidate series, low anti-HIV activities ranging from 70 nM to 1.9 μM and from 0.5 to 6.1 μM were measured when TK+ CEM-SS and MT-4 cells were incubated with these derivatives, respectively. Although these prodrugs degraded very rapidly, these values are much higher than that of AZT, indicating that (i) AZT is not the major metabolite that has been released upon hydrolysis in the extra- and intra-cellular medium, (ii) AZT-MP has not been released at an efficient inhibitory level into the intracellular medium, and/or (iii) the other metabolites are poor anti-HIV active agents. It is noteworthy that the highest antiviral activity was achieved by the prodrug that released the largest amount of AZT, that is, 21. That its antiviral activity is related to AZT and not to AZT-MP is further supported by the absence of inhibition measured on TK- cells. However, among the eight phosphoramidate conjugates 15-22, six were found to have a weak inhibitory activity on HIV replication in TK- CEM cells with IC50 values of about 40-100 μM (for example, 15-18, 20 and 22). This could indicate that a low amount of free AZT-MP has been released into the cells. However, two of these conjugates (15 and 16) were found to be moderately toxic in CEM-SS and MT-4 cells (CC50 of 40 and 18 μM in CEM-SS and 19 and 2 μM in MT-4 cells, respectively). On TK- CEM cells, the IC50 and the CC50 of compound 15 are very close, indicating a non-specific antiviral activity.

   Click to Show/Hide
In Vitro Model HIV infection HIV-1 LAI infected CEM/TK+ cell CVCL_0207
Experiment 2 Reporting the Activity Data of This PDC [1]
Indication Human immunodeficiency virus infection
Efficacy Data Half maximal cytotoxicity concentration (CC50) > 50 μM
MOA of PDC
We report on the synthesis of a series of peptideAZT (2A, 2B, 5A, 5B) and peptide-(AZT-MP) conjugates incorporating peptide sequences found in a nonapeptide known to be a HIV-PR substrate. We also selected the AZT-MP phosphoramidate peptide-conjugates containing an additional alanine residue directly linked to the phosphorus atom. Indeed, among the various aminoacid phosphoramidates of ddN analogues known so far, the alanine derivative was shown to be one of the most efficient ddN-MP delivery system. All these conjugates contain the scissile Phe-Pro motif. In the case of the AZT prodrugs, the AZT and peptide moieties were connected through an ester bond. To ensure a greater stability, particularly toward aminopeptidases, the N-terminal amino group of the peptide was masked by different protecting groups. In the case of the AZT-MP prodrugs, the various peptide moieties were connected via their N-terminal amino group to the AZT-phenoxy-phosphodiester group. We report also on (i) the stability of the peptide-AZT and peptide(AZT-MP) prodrugs when incubated in a physiological medium that does or does not contain 10% fetal calf serum, and in CEM cell lysates in order to mimic the behaviour of these compounds inside the cells, (ii) their ability to inhibit the HIV-PR activity and their susceptibility to be hydrolysed by PR, and (iii) their in vitro anti-HIV activities and cytotoxicities, which were evaluated in acutely-infected and uninfected MT4 and CEM cells, respectively. Moreover, their antiviral activities were also investigated in a thymidine kinase-deficient (TK- ) CEM cell line in order to gain further insight into their mechanism of action.

   Click to Show/Hide
Description
Concerning the phosphoramidate series, low anti-HIV activities ranging from 70 nM to 1.9 μM and from 0.5 to 6.1 μM were measured when TK+ CEM-SS and MT-4 cells were incubated with these derivatives, respectively. Although these prodrugs degraded very rapidly, these values are much higher than that of AZT, indicating that (i) AZT is not the major metabolite that has been released upon hydrolysis in the extra- and intra-cellular medium, (ii) AZT-MP has not been released at an efficient inhibitory level into the intracellular medium, and/or (iii) the other metabolites are poor anti-HIV active agents. It is noteworthy that the highest antiviral activity was achieved by the prodrug that released the largest amount of AZT, that is, 21. That its antiviral activity is related to AZT and not to AZT-MP is further supported by the absence of inhibition measured on TK- cells. However, among the eight phosphoramidate conjugates 15-22, six were found to have a weak inhibitory activity on HIV replication in TK- CEM cells with IC50 values of about 40-100 μM (for example, 15-18, 20 and 22). This could indicate that a low amount of free AZT-MP has been released into the cells. However, two of these conjugates (15 and 16) were found to be moderately toxic in CEM-SS and MT-4 cells (CC50 of 40 and 18 μM in CEM-SS and 19 and 2 μM in MT-4 cells, respectively). On TK- CEM cells, the IC50 and the CC50 of compound 15 are very close, indicating a non-specific antiviral activity.

   Click to Show/Hide
In Vitro Model Normal MT4/HIV-1 cell CVCL_RW54
Experiment 3 Reporting the Activity Data of This PDC [1]
Indication Human immunodeficiency virus infection
Efficacy Data Half maximal cytotoxicity concentration (CC50) > 100 μM
MOA of PDC
We report on the synthesis of a series of peptideAZT (2A, 2B, 5A, 5B) and peptide-(AZT-MP) conjugates incorporating peptide sequences found in a nonapeptide known to be a HIV-PR substrate. We also selected the AZT-MP phosphoramidate peptide-conjugates containing an additional alanine residue directly linked to the phosphorus atom. Indeed, among the various aminoacid phosphoramidates of ddN analogues known so far, the alanine derivative was shown to be one of the most efficient ddN-MP delivery system. All these conjugates contain the scissile Phe-Pro motif. In the case of the AZT prodrugs, the AZT and peptide moieties were connected through an ester bond. To ensure a greater stability, particularly toward aminopeptidases, the N-terminal amino group of the peptide was masked by different protecting groups. In the case of the AZT-MP prodrugs, the various peptide moieties were connected via their N-terminal amino group to the AZT-phenoxy-phosphodiester group. We report also on (i) the stability of the peptide-AZT and peptide(AZT-MP) prodrugs when incubated in a physiological medium that does or does not contain 10% fetal calf serum, and in CEM cell lysates in order to mimic the behaviour of these compounds inside the cells, (ii) their ability to inhibit the HIV-PR activity and their susceptibility to be hydrolysed by PR, and (iii) their in vitro anti-HIV activities and cytotoxicities, which were evaluated in acutely-infected and uninfected MT4 and CEM cells, respectively. Moreover, their antiviral activities were also investigated in a thymidine kinase-deficient (TK- ) CEM cell line in order to gain further insight into their mechanism of action.

   Click to Show/Hide
Description
Concerning the phosphoramidate series, low anti-HIV activities ranging from 70 nM to 1.9 μM and from 0.5 to 6.1 μM were measured when TK+ CEM-SS and MT-4 cells were incubated with these derivatives, respectively. Although these prodrugs degraded very rapidly, these values are much higher than that of AZT, indicating that (i) AZT is not the major metabolite that has been released upon hydrolysis in the extra- and intra-cellular medium, (ii) AZT-MP has not been released at an efficient inhibitory level into the intracellular medium, and/or (iii) the other metabolites are poor anti-HIV active agents. It is noteworthy that the highest antiviral activity was achieved by the prodrug that released the largest amount of AZT, that is, 21. That its antiviral activity is related to AZT and not to AZT-MP is further supported by the absence of inhibition measured on TK- cells. However, among the eight phosphoramidate conjugates 15-22, six were found to have a weak inhibitory activity on HIV replication in TK- CEM cells with IC50 values of about 40-100 μM (for example, 15-18, 20 and 22). This could indicate that a low amount of free AZT-MP has been released into the cells. However, two of these conjugates (15 and 16) were found to be moderately toxic in CEM-SS and MT-4 cells (CC50 of 40 and 18 μM in CEM-SS and 19 and 2 μM in MT-4 cells, respectively). On TK- CEM cells, the IC50 and the CC50 of compound 15 are very close, indicating a non-specific antiviral activity.

   Click to Show/Hide
In Vitro Model HIV infection HIV-1 LAI infected CEM/TK- cell CVCL_0207
Experiment 4 Reporting the Activity Data of This PDC [1]
Indication Human immunodeficiency virus infection
Efficacy Data Half maximal inhibitory concentration (IC50)
0.07 μM
MOA of PDC
We report on the synthesis of a series of peptideAZT (2A, 2B, 5A, 5B) and peptide-(AZT-MP) conjugates incorporating peptide sequences found in a nonapeptide known to be a HIV-PR substrate. We also selected the AZT-MP phosphoramidate peptide-conjugates containing an additional alanine residue directly linked to the phosphorus atom. Indeed, among the various aminoacid phosphoramidates of ddN analogues known so far, the alanine derivative was shown to be one of the most efficient ddN-MP delivery system. All these conjugates contain the scissile Phe-Pro motif. In the case of the AZT prodrugs, the AZT and peptide moieties were connected through an ester bond. To ensure a greater stability, particularly toward aminopeptidases, the N-terminal amino group of the peptide was masked by different protecting groups. In the case of the AZT-MP prodrugs, the various peptide moieties were connected via their N-terminal amino group to the AZT-phenoxy-phosphodiester group. We report also on (i) the stability of the peptide-AZT and peptide(AZT-MP) prodrugs when incubated in a physiological medium that does or does not contain 10% fetal calf serum, and in CEM cell lysates in order to mimic the behaviour of these compounds inside the cells, (ii) their ability to inhibit the HIV-PR activity and their susceptibility to be hydrolysed by PR, and (iii) their in vitro anti-HIV activities and cytotoxicities, which were evaluated in acutely-infected and uninfected MT4 and CEM cells, respectively. Moreover, their antiviral activities were also investigated in a thymidine kinase-deficient (TK- ) CEM cell line in order to gain further insight into their mechanism of action.

   Click to Show/Hide
Description
Concerning the phosphoramidate series, low anti-HIV activities ranging from 70 nM to 1.9 μM and from 0.5 to 6.1 μM were measured when TK+ CEM-SS and MT-4 cells were incubated with these derivatives, respectively. Although these prodrugs degraded very rapidly, these values are much higher than that of AZT, indicating that (i) AZT is not the major metabolite that has been released upon hydrolysis in the extra- and intra-cellular medium, (ii) AZT-MP has not been released at an efficient inhibitory level into the intracellular medium, and/or (iii) the other metabolites are poor anti-HIV active agents. It is noteworthy that the highest antiviral activity was achieved by the prodrug that released the largest amount of AZT, that is, 21. That its antiviral activity is related to AZT and not to AZT-MP is further supported by the absence of inhibition measured on TK- cells. However, among the eight phosphoramidate conjugates 15-22, six were found to have a weak inhibitory activity on HIV replication in TK- CEM cells with IC50 values of about 40-100 μM (for example, 15-18, 20 and 22). This could indicate that a low amount of free AZT-MP has been released into the cells. However, two of these conjugates (15 and 16) were found to be moderately toxic in CEM-SS and MT-4 cells (CC50 of 40 and 18 μM in CEM-SS and 19 and 2 μM in MT-4 cells, respectively). On TK- CEM cells, the IC50 and the CC50 of compound 15 are very close, indicating a non-specific antiviral activity.

   Click to Show/Hide
In Vitro Model HIV infection HIV-1 LAI infected CEM/TK+ cell CVCL_0207
Experiment 5 Reporting the Activity Data of This PDC [1]
Indication Human immunodeficiency virus infection
Efficacy Data Half maximal inhibitory concentration (IC50)
0.51 μM
MOA of PDC
We report on the synthesis of a series of peptideAZT (2A, 2B, 5A, 5B) and peptide-(AZT-MP) conjugates incorporating peptide sequences found in a nonapeptide known to be a HIV-PR substrate. We also selected the AZT-MP phosphoramidate peptide-conjugates containing an additional alanine residue directly linked to the phosphorus atom. Indeed, among the various aminoacid phosphoramidates of ddN analogues known so far, the alanine derivative was shown to be one of the most efficient ddN-MP delivery system. All these conjugates contain the scissile Phe-Pro motif. In the case of the AZT prodrugs, the AZT and peptide moieties were connected through an ester bond. To ensure a greater stability, particularly toward aminopeptidases, the N-terminal amino group of the peptide was masked by different protecting groups. In the case of the AZT-MP prodrugs, the various peptide moieties were connected via their N-terminal amino group to the AZT-phenoxy-phosphodiester group. We report also on (i) the stability of the peptide-AZT and peptide(AZT-MP) prodrugs when incubated in a physiological medium that does or does not contain 10% fetal calf serum, and in CEM cell lysates in order to mimic the behaviour of these compounds inside the cells, (ii) their ability to inhibit the HIV-PR activity and their susceptibility to be hydrolysed by PR, and (iii) their in vitro anti-HIV activities and cytotoxicities, which were evaluated in acutely-infected and uninfected MT4 and CEM cells, respectively. Moreover, their antiviral activities were also investigated in a thymidine kinase-deficient (TK- ) CEM cell line in order to gain further insight into their mechanism of action.

   Click to Show/Hide
Description
Concerning the phosphoramidate series, low anti-HIV activities ranging from 70 nM to 1.9 μM and from 0.5 to 6.1 μM were measured when TK+ CEM-SS and MT-4 cells were incubated with these derivatives, respectively. Although these prodrugs degraded very rapidly, these values are much higher than that of AZT, indicating that (i) AZT is not the major metabolite that has been released upon hydrolysis in the extra- and intra-cellular medium, (ii) AZT-MP has not been released at an efficient inhibitory level into the intracellular medium, and/or (iii) the other metabolites are poor anti-HIV active agents. It is noteworthy that the highest antiviral activity was achieved by the prodrug that released the largest amount of AZT, that is, 21. That its antiviral activity is related to AZT and not to AZT-MP is further supported by the absence of inhibition measured on TK- cells. However, among the eight phosphoramidate conjugates 15-22, six were found to have a weak inhibitory activity on HIV replication in TK- CEM cells with IC50 values of about 40-100 μM (for example, 15-18, 20 and 22). This could indicate that a low amount of free AZT-MP has been released into the cells. However, two of these conjugates (15 and 16) were found to be moderately toxic in CEM-SS and MT-4 cells (CC50 of 40 and 18 μM in CEM-SS and 19 and 2 μM in MT-4 cells, respectively). On TK- CEM cells, the IC50 and the CC50 of compound 15 are very close, indicating a non-specific antiviral activity.

   Click to Show/Hide
In Vitro Model Normal MT4/HIV-1 cell CVCL_RW54
Experiment 6 Reporting the Activity Data of This PDC [1]
Indication Human immunodeficiency virus infection
Efficacy Data Half maximal inhibitory concentration (IC50) > 100 μM
MOA of PDC
We report on the synthesis of a series of peptideAZT (2A, 2B, 5A, 5B) and peptide-(AZT-MP) conjugates incorporating peptide sequences found in a nonapeptide known to be a HIV-PR substrate. We also selected the AZT-MP phosphoramidate peptide-conjugates containing an additional alanine residue directly linked to the phosphorus atom. Indeed, among the various aminoacid phosphoramidates of ddN analogues known so far, the alanine derivative was shown to be one of the most efficient ddN-MP delivery system. All these conjugates contain the scissile Phe-Pro motif. In the case of the AZT prodrugs, the AZT and peptide moieties were connected through an ester bond. To ensure a greater stability, particularly toward aminopeptidases, the N-terminal amino group of the peptide was masked by different protecting groups. In the case of the AZT-MP prodrugs, the various peptide moieties were connected via their N-terminal amino group to the AZT-phenoxy-phosphodiester group. We report also on (i) the stability of the peptide-AZT and peptide(AZT-MP) prodrugs when incubated in a physiological medium that does or does not contain 10% fetal calf serum, and in CEM cell lysates in order to mimic the behaviour of these compounds inside the cells, (ii) their ability to inhibit the HIV-PR activity and their susceptibility to be hydrolysed by PR, and (iii) their in vitro anti-HIV activities and cytotoxicities, which were evaluated in acutely-infected and uninfected MT4 and CEM cells, respectively. Moreover, their antiviral activities were also investigated in a thymidine kinase-deficient (TK- ) CEM cell line in order to gain further insight into their mechanism of action.

   Click to Show/Hide
Description
Concerning the phosphoramidate series, low anti-HIV activities ranging from 70 nM to 1.9 μM and from 0.5 to 6.1 μM were measured when TK+ CEM-SS and MT-4 cells were incubated with these derivatives, respectively. Although these prodrugs degraded very rapidly, these values are much higher than that of AZT, indicating that (i) AZT is not the major metabolite that has been released upon hydrolysis in the extra- and intra-cellular medium, (ii) AZT-MP has not been released at an efficient inhibitory level into the intracellular medium, and/or (iii) the other metabolites are poor anti-HIV active agents. It is noteworthy that the highest antiviral activity was achieved by the prodrug that released the largest amount of AZT, that is, 21. That its antiviral activity is related to AZT and not to AZT-MP is further supported by the absence of inhibition measured on TK- cells. However, among the eight phosphoramidate conjugates 15-22, six were found to have a weak inhibitory activity on HIV replication in TK- CEM cells with IC50 values of about 40-100 μM (for example, 15-18, 20 and 22). This could indicate that a low amount of free AZT-MP has been released into the cells. However, two of these conjugates (15 and 16) were found to be moderately toxic in CEM-SS and MT-4 cells (CC50 of 40 and 18 μM in CEM-SS and 19 and 2 μM in MT-4 cells, respectively). On TK- CEM cells, the IC50 and the CC50 of compound 15 are very close, indicating a non-specific antiviral activity.

   Click to Show/Hide
In Vitro Model HIV infection HIV-1 LAI infected CEM/TK- cell CVCL_0207
Experiment 7 Reporting the Activity Data of This PDC [1]
Indication Human immunodeficiency virus infection
Efficacy Data Half maximal inhibitory concentration (IC50) > 1400 μM
MOA of PDC
We report on the synthesis of a series of peptideAZT (2A, 2B, 5A, 5B) and peptide-(AZT-MP) conjugates incorporating peptide sequences found in a nonapeptide known to be a HIV-PR substrate. We also selected the AZT-MP phosphoramidate peptide-conjugates containing an additional alanine residue directly linked to the phosphorus atom. Indeed, among the various aminoacid phosphoramidates of ddN analogues known so far, the alanine derivative was shown to be one of the most efficient ddN-MP delivery system. All these conjugates contain the scissile Phe-Pro motif. In the case of the AZT prodrugs, the AZT and peptide moieties were connected through an ester bond. To ensure a greater stability, particularly toward aminopeptidases, the N-terminal amino group of the peptide was masked by different protecting groups. In the case of the AZT-MP prodrugs, the various peptide moieties were connected via their N-terminal amino group to the AZT-phenoxy-phosphodiester group. We report also on (i) the stability of the peptide-AZT and peptide(AZT-MP) prodrugs when incubated in a physiological medium that does or does not contain 10% fetal calf serum, and in CEM cell lysates in order to mimic the behaviour of these compounds inside the cells, (ii) their ability to inhibit the HIV-PR activity and their susceptibility to be hydrolysed by PR, and (iii) their in vitro anti-HIV activities and cytotoxicities, which were evaluated in acutely-infected and uninfected MT4 and CEM cells, respectively. Moreover, their antiviral activities were also investigated in a thymidine kinase-deficient (TK- ) CEM cell line in order to gain further insight into their mechanism of action.

   Click to Show/Hide
Description
Concerning the phosphoramidate series, low anti-HIV activities ranging from 70 nM to 1.9 μM and from 0.5 to 6.1 μM were measured when TK+ CEM-SS and MT-4 cells were incubated with these derivatives, respectively. Although these prodrugs degraded very rapidly, these values are much higher than that of AZT, indicating that (i) AZT is not the major metabolite that has been released upon hydrolysis in the extra- and intra-cellular medium, (ii) AZT-MP has not been released at an efficient inhibitory level into the intracellular medium, and/or (iii) the other metabolites are poor anti-HIV active agents. It is noteworthy that the highest antiviral activity was achieved by the prodrug that released the largest amount of AZT, that is, 21. That its antiviral activity is related to AZT and not to AZT-MP is further supported by the absence of inhibition measured on TK- cells. However, among the eight phosphoramidate conjugates 15-22, six were found to have a weak inhibitory activity on HIV replication in TK- CEM cells with IC50 values of about 40-100 μM (for example, 15-18, 20 and 22). This could indicate that a low amount of free AZT-MP has been released into the cells. However, two of these conjugates (15 and 16) were found to be moderately toxic in CEM-SS and MT-4 cells (CC50 of 40 and 18 μM in CEM-SS and 19 and 2 μM in MT-4 cells, respectively). On TK- CEM cells, the IC50 and the CC50 of compound 15 are very close, indicating a non-specific antiviral activity.

   Click to Show/Hide
In Vitro Model HIV infection HIV-1 LAI infected CEM cell CVCL_0207
References
Ref 1 AZT and AZT-monophosphate prodrugs incorporating HIV-protease substrate fragment: synthesis and evaluation as specific drug delivery systems. Antivir Chem Chemother. 2006;17(4):193-213. doi: 10.1177/095632020601700404.
